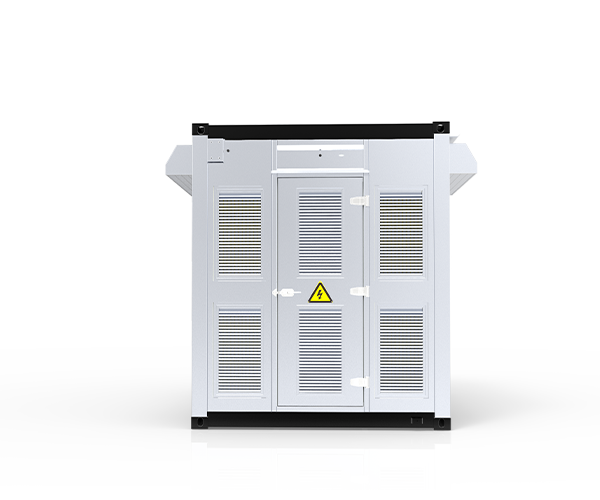

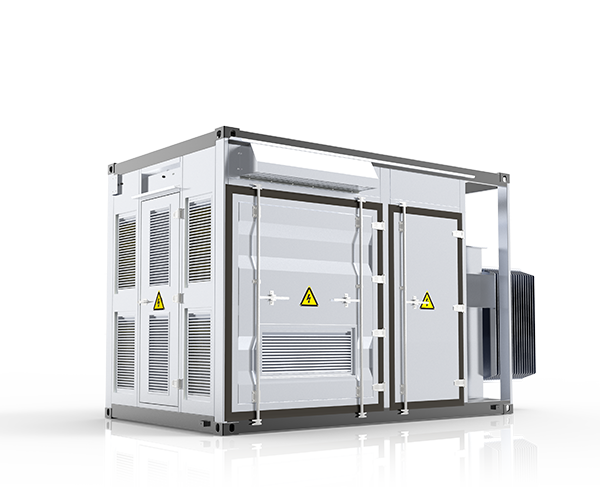

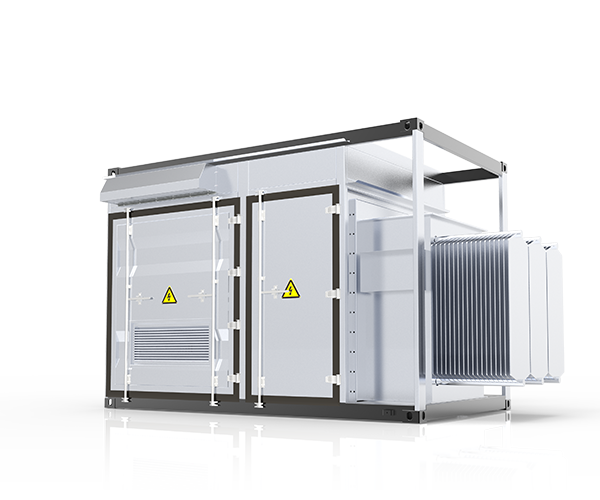

EH-1260-A-OD 35
IP54 protection, adapt to outdoor harsh environments.
Integrated converter and step-up transformer, high system efficiency, low cost.
Grid friendly, compensate active and reactive power according to the grid dispatching.
Technical Parameters
DC Side
| Maximum input voltage | 1000V |
| Maximum DC current | 2X1219A |
| Battery pack voltage range | 580~850V |
| No. of battery packs | 2 |
AC Side (Grid)
| Rated AC power | 1260kW |
| Maximum AC current | 1386kW |
| Rated grid voltage | 35kV |
| Maximum AC current | 22.9A |
| Rated grid frequency | 50/60Hz |
| THD at rated power | <1.5%(>50％load) |
| Power factor | >0.99（>20％load） |
| Power factor adjustable range | 1 leading ~ 1 lagging |
Electrical Characteristics
System Characteristics
| Isolation method | Oil-immersed transformer/dry-type transformer |
| Maximum efficiency | 98.08% |
| Protection level | IP54 |
| Working temperature | -30~+55 ℃ |
| Allowable humidity range | 0~95% (No condensation) |
| Altitude at full load | 3000m |
| Cooling method | Temperature controlled forced air cooling |
| Communication Interface | RS485/CAN/Ethernet |
Mechanical Parameters
| Dimensions（W/H/D） | 4708×2896×2438mm （Oil immersed |
| 6058×2896×2438mm（Dry-type） | |
| Weight | 10500kg |
