Front end maintenance for converter, easy installation and maintenance.
IP54 protection, adapt to outdoor harsh environments.
Grid friendly, compensate active and reactive power according to the grid dispatching.
Projects
Home > Product > Energy Storage System > EH-2000-B-OD

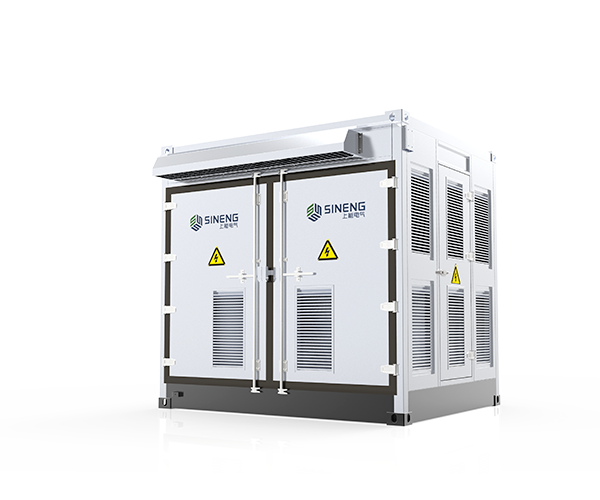

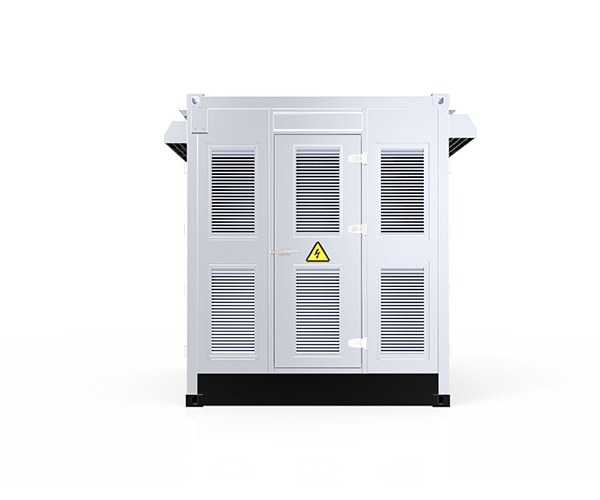

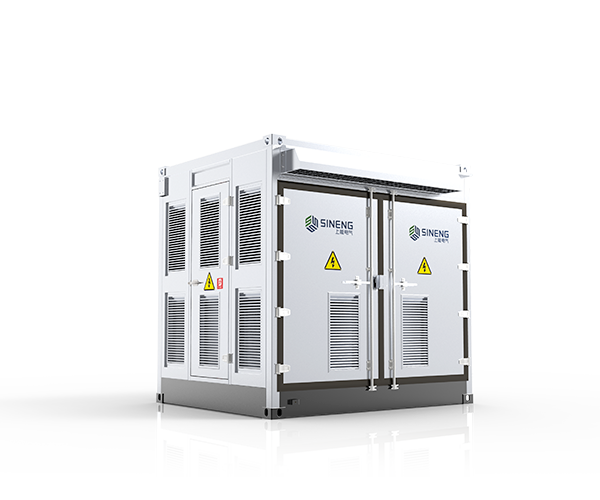

EH-2000-B-OD
Front end maintenance for converter, easy installation and maintenance.
IP54 protection, adapt to outdoor harsh environments.
Grid friendly, compensate active and reactive power according to the grid dispatching.
Technical Parameters
DC Side
| Maximum input voltage | 1000V |
| Maximum DC current | 4X10550A |
| Battery pack voltage range | 580~850V |
| No. of battery packs | 4 |
AC Side (Grid)
| Rated AC power | 2000kW |
| Maximum AC current | 2400kW |
| Rated grid voltage | 400V,3W+PE |
| Grid voltage range | 340~440V |
| Maximum AC current | 4X866A |
| Rated grid frequency | 50/60Hz |
| Total harmonic distortion | <1.5%(>50％load) |
| Power factor | >0.99（>20％load） |
| Power factor adjustable range | 1 leading ~ 1 lagging |
Electrical Characteristics
System Characteristics
| Isolation method | transformer less |
| Maximum efficiency | 99.0% |
| Protection level | IP54 |
| Working temperature | -30~+55 ℃ |
| Allowable humidity range | 0~95% (No condensation) |
| Altitude at full load | 3000m |
| Cooling method | Temperature controlled forced air cooling |
| Communication Interface | RS485/CAN/Ethernet |
Mechanical Parameters
| Dimensions（W/H/D） | 2991×2896×2438mm |
| Weight | 6500kg |
General date
