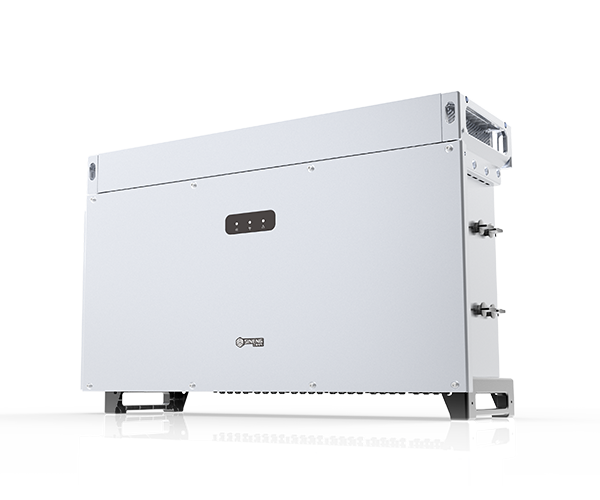

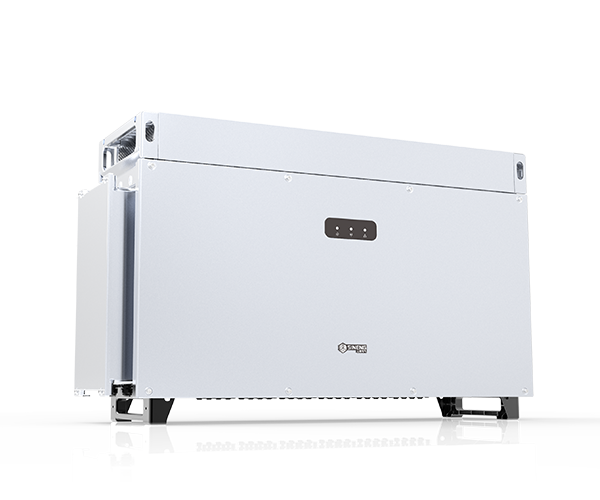

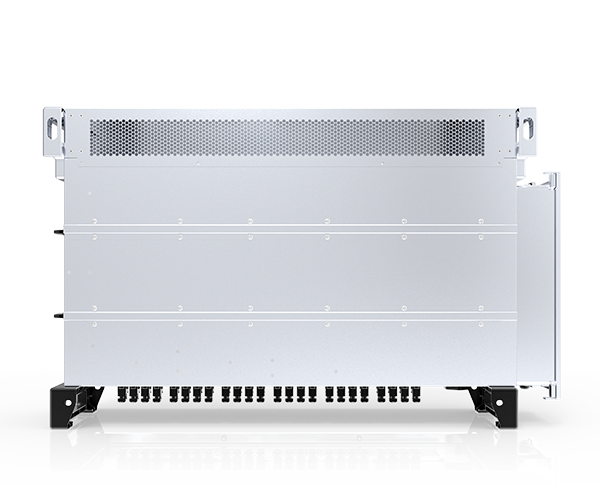

SP-250K-H1
IP66 protection level, C5 corrosion protection level, safe and reliable
12 MPPTs design, adapt to complex environment
The maximum branch current is 15A, suitable for high-power Bi-facial module access
String-level PV curve scanning to accurately locate string failure
Technical Parameters
Input (DC)
| Max. PV input voltage | 1500V |
| Max. input current | 30A*12 |
| Rated input voltage | 1080V |
| MPP voltage range | 500~1500V |
| MPP voltage range for nominal power | 880~1300V |
| Number of MPPT trackers | 12 |
| Max. number of PV strings per MPPT | 2 |
Output (AC)
| Rated output power | 250kW@30℃/225kW@40℃/200kW@50℃ |
| Max. output power | 250kW |
| Rated grid voltage | 800V |
| Grid voltage range | 680~880V |
| Max. output current | 180.4A |
| Rated grid frequency / range | 50Hz/45~55Hz, 60Hz/55~65Hz |
| Output current harmonic(at nominal power) | <3% |
| Power factor at nominal power / range | >0.99/0.8leading to 0.8lagging |
Protection
| DC reverse connection protection | Yes |
| Overvoltage protection | DC Type II/AC Type II |
| Leakage current protection | Yes |
| Grid monitoring | Yes |
| Insulation monitoring | Yes |
| Anti-island protection | Yes |
Efficiency
| Max. efficiency | 99.00% |
| EU efficiency | 98.80% |
Transformer
General date
| Isolation method | Transformerless |
| Self-consuming in night | <2W |
| Protection level | IP66 |
| Noise | <60dB |
| Temperature | ﹣30℃～+60℃ |
| Allowed humidity(non condensing) | 0-100% |
| Cooling mode | Temperature controlled forced air cooling |
| Max.operating altitude | 4000m (＞3000m derating) |
| Communication port | Standard:RS485, Optional:PLC |
| Dimensions (W×H×D) | 1200×690×352mm |
| Weight | 120kg |
