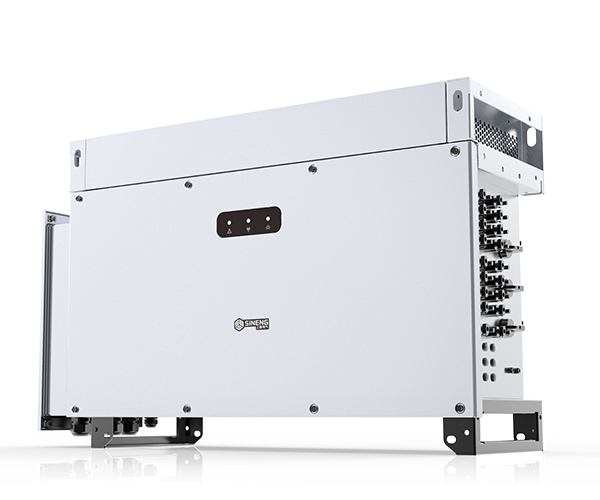

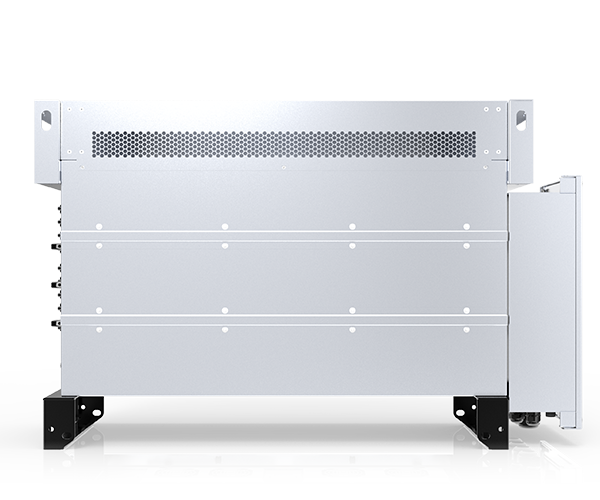

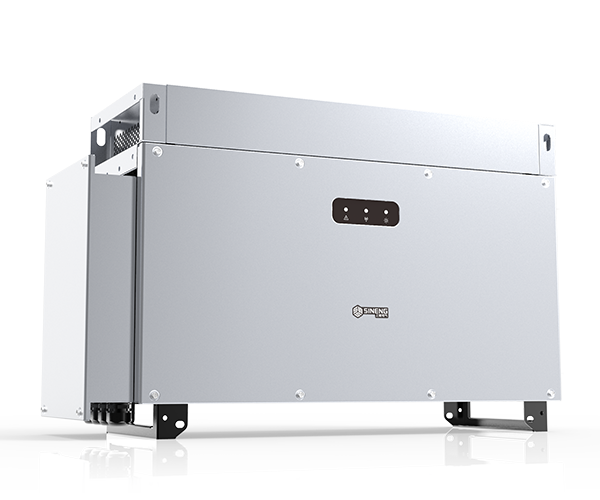

SP-110K-L
DC switch configured for safe operation and maintenance
10 MPPTs design, overload ratio is up to 1.3
Wireless communication supported to save communication cable cost
Maximum branch current 13A, suitable for bifacial modules
Three-level + soft switching technology, ultra-wide MPPT voltage range
Technical Parameters
Input (DC)
| Max. PV input voltage | 1100V |
| Max. input current | 26A*10 |
| Rated input voltage | 600V |
| MPP voltage range | 200~1000V |
| MPP voltage range for nominal power | 550~850V |
| Number of MPPT trackers | 10 |
| Max. number of PV strings per MPPT | 2 |
Output (AC)
| Rated output power | 110kW@45℃/100kW@50℃ |
| Max. output power | 110kW |
| Rated grid voltage | 380V/400V |
| Grid voltage range | 340~440V |
| Max. output current | 167A@380V,158.8A@400V |
| Rated grid frequency / range | 50Hz/45~55Hz, 60Hz/55~65Hz |
| Output current harmonic(at nominal power) | <3% |
| Power factor at nominal power / range | >0.99/0.8leading to 0.8 lagging |
Protection
| DC reverse connection protection | Yes |
| Overvoltage protection | DC Type II/AC Type II |
| Leakage current protection | Yes |
| Grid monitoring | Yes |
| Insulation monitoring | Yes |
| Anti-island protection | Yes |
Efficiency
| Max. efficiency | 0.987 |
| EU efficiency | 0.985 |
Transformer
General date
| Isolation method | Transformerless |
| Self-consuming in night | <2W |
| Protection level | IP66 |
| Noise | <60dB |
| Temperature | ﹣30℃～+60℃ |
| Allowed humidity(non condensing) | 0-100% |
| Cooling mode | Temperature controlled forced air cooling |
| Max.operating altitude | 4000m (＞3000m derating) |
| Communication port | Standard:RS485, Optional:WIFI |
| Dimensions (W×H×D) | 1018×630×339mm |
| Weight | 85kg |
